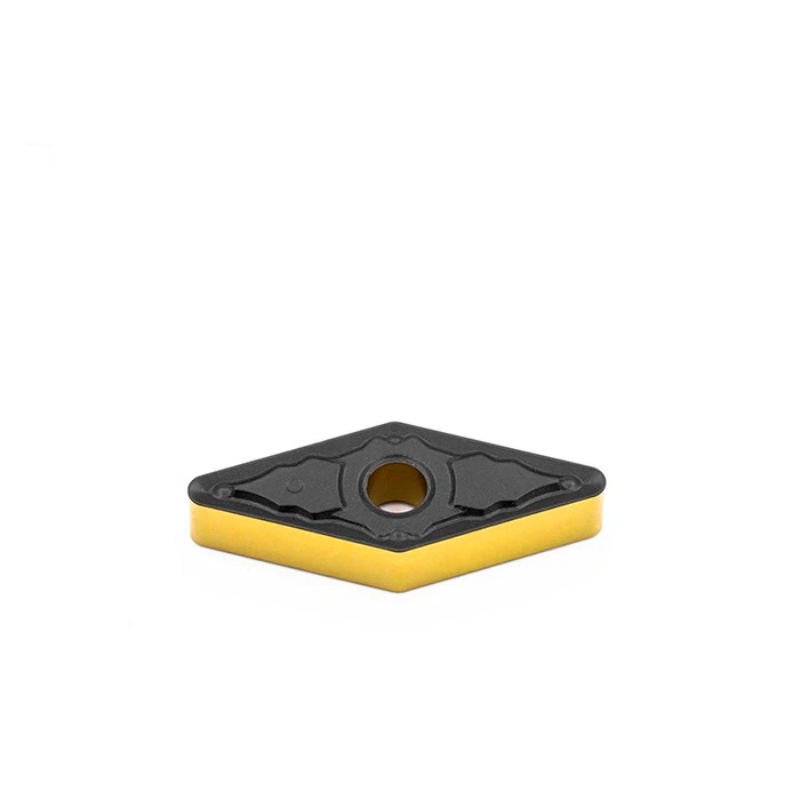

CVD Coated Turning Inserts VNMG Carbide Insert

Product name: CVD Coated Inserts Series: VNMG Chip-Breakers: AM//BF/CM

Products Details

This kind of VNMG Insert is made of high quality alloy metal with advanced technology. The surface is treated with CVD coating to extend the cutting life. The unique V shape design with negative angles guarantees efficient machining and high stability. The combination of different chip breakers and grades will help it to deal with different working condition and multiple operations. In addition, it has the advantages of high hardness, high efficiency, high accuracy, corrosion resistance, long service life, smooth appearance. We can also provide customized service to meet the requirements of different customers.

Application

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

VK4215

VK4315

VK4225

VK4325

VK4235

VK4335

VK1025

VK1325

VK1525

VK1328

VR1010

VR1325

P

Semi Finishing

VNMG110404-AM

0.80-

2.50

0.15- 0.36

O

O

O

VNMG110408-AM

1.00- 2.50

0.17- 0.36

O

O

O

VNMG160404-AM

0.80- 3.00

0.15- 0.36

O

O

O

VNMG160408-AM

1.00- 2.50

0.17- 0.36

O

O

O

• : Recommended Grade O: Optional Grade

Application

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

VK4215

VK4315

VK4225

VK4325

VK1025

VK1325

VK1525

VK1328

VR1010

VR1325

VR1525

VR1330

M

Finishing

VNMG160404-BF

0.25-

3.30

0.05-

0.15

O

O

VNMG160408-BF

0.55-

3.30

0.10-

0.30

O

O

VNMG160412-BF

0.75-

3.30

0.15-

0.45

O

O

• : Recommended Grade O: Optional Grade

Application

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

VK3020

VK3040

VK3315

VK3415

K

Semi Finishing

VNMG160404-CM

0.40-3.30

0.08-0.25

O

VNMG160408-CM

0.80-3.30

0.15-0.45

O

VNMG160412-CM

1.20-3.30

0.25-0.65

O

• : Recommended Grade O: Optional Grade

Length

Size(mm)

IC

S

d

r

11

6.35

4.76

2.26

0.4-0.8

16

9.525

4.76

3.81

0.4-0.8

11.What is tool insert? Inserts are removable cutting tips, which means they are not brazed or welded to the tool body. They are usually index-able, meaning that they can be exchanged, and often also rotated or flipped, without disturbing the overall geometry of the tool (effective diameter, tool length offset, etc.). 2.What does index-able tooling mean? Index-able tools are predominantly made of inserts or tips, where the cutting edge is a replaceable shaped piece which is welded or clamped on to a tool body. These are generally used for turning, milling and hole-making operations. 3.Is non-standard products available? Yes, we accept OEM ODM orders 4.Do you offer samples? Yes, we do offer samples. However, buyers need to pay for the freight charge. In addition, whether samples are free or not depends on the quantity you buy. Hot Tags: metal cutting inserts, China, suppliers, factory, buy, price, cheap, quotation, free sampleThe VNMG Insert is mainly used in the fields of small part turning, general turning, metal turning, milling, cutting and grooving, thread turning, etc.
