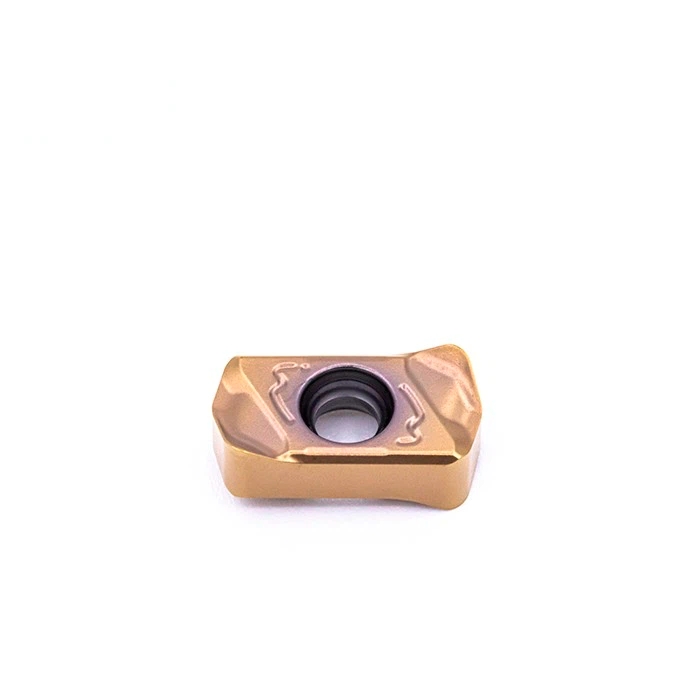

High Feed Milling Insert LNMU Carbide Insert

Product name: LNMU insert Series: LNMU Chip-Breakers: GM

Products Details

High feed milling tools save time by avoiding semi finishing and reducing tool changes. Our expansive range of high feed milling solutions meets all application needs.LNMU insert is one kind of high feed milling insert. Double-sided fast feed, 4 edges is very cost-effective. Good wear and abrasive resistance. Precision ground and polished milling inserts.1.What are inserts made of? Almost all the inserts consist of cemented carbide, which results from a combination of tungsten carbide (WC) and cobalt (Co). The hard particles within the insert are WC, while Co can be thought of as the glue that holds the insert together. 2.How do I choose the milling insert? Selecting the milling insert based on the application of demands and the space for the cutting tools. the larger of the insert.the better of the stability . For heavy machining, the insert size is normally above 1 inch. finishing, the size cans be reduced. 3.What milling method is generally recommended? Down milling is generally recommended. With the down milling method, the burnishing effect can be avoided, resulting in less heat & minimal work-hardening tendency. 4.how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment. Hot Tags: cemented carbide inserts, China, suppliers, factory, buy, price, cheap, quotation, free sample

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

VK3020

VK3040

VK1025

VK1325

VK1525

VK1328

VR1010

VR1520

VR1525

VR1028

VR1330

LNMU0303ZER-GM

0.20-

2.00

0.50-

1.30

O

O

• : Recommended Grade O: Optional Grade

Length

Size(mm)

W

S

APMX

L

r

3

6

3.75

1

11.8

1.2

1The type of carbide grade and the coating on inserts are originally intended for milling stainless steel, but it also works when milling other alloys.
