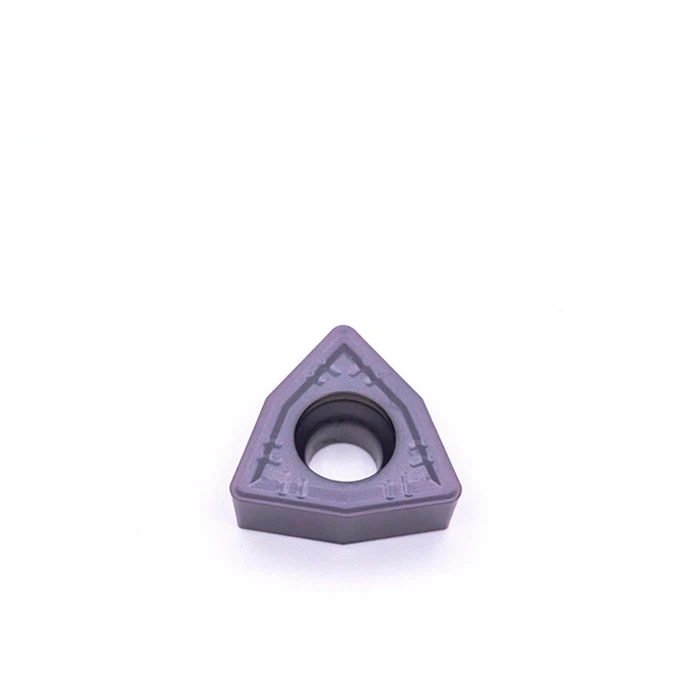

Factory Direct Shallow Hole Indexable Insert WCMT Carbide Insert

WCMT is one kind of shallow hole index-able insert. It is power-efficient, productive.WC-type inserts are the most commonly used drill inserts in metalworking world. Indexable insert drills can be used in boring operations in order to save tool changing time. It is power-efficient, productive and reduces demands on the machine tool spindle as the main cutting forces are directed axially along the spindle.1.What are face mills? Face milling is a machining process in which the milling cutting is placed perpendicular to the work-piece. The milling cutting is essentially positioned “face down” towards the top of the work-piece. When engaged, the top of the milling cutting grinds away at the top of the work-piece to remove some of its material. 2.How do I choose the milling insert? Selecting the milling insert based on the application of demands and the space for the cutting tools. the larger of the insert.the better of the stability . For heavy machining, the insert size is normally above 1 inch. finishing, the size cans be reduced. 3.What is high speed machining? High-feed milling is a machining method that pairs shallow depth of cut with high feed rate. It can achieve a very high metal-removal rate, high-speed machining to reduce cycle time, increase tool life and productivity. 4.Do you offer samples? Yes, we do offer samples. However, buyers need to pay for the freight charge. In addition, whether samples are free or not depends on the quantity you buy. Hot Tags: cemented carbide inserts, China, suppliers, factory, buy, price, cheap, quotation, free sample

Type	Boring Range (mm)	Size					Application	Grade
		L	IC	S	d	r		PVD
		L	IC	S	d	r		VK1025	VK1325
WCMT030208-JW	16-20	3.8	5.56	2.38	2.8	0.8	Semi-finishing	•	•
WCMT040208-JW	21-25	4.3	6.35	2.38	3.1	0.8		•	•
WCMT050308-JW	26-30	5.4	7.94	3.18	3.2	0.8		•	•
WCMT06T308-JW	31-41	6.5	9.53	3.97	3.7	0.8		•	•
WCMT080412-JW	42-58	8.7	12.7	4.76	4.3	1.2		•	•

• : Recommended Grade O: Optional Grade

Application for hole machining in various materials. Steel, stainless steel and cast iron.

Shallow Hole Indexable Insert WCMT Carbide Insert
